Maximizing Fiber Potential: Your Guide to WDM Solutions with Feiyi OEO
In today’s data-driven world, the demand for network bandwidth is growing exponentially. To meet this challenge cost-effectively, maximizing the capacity of existing optical fiber infrastructure is paramount. Wavelength Division Multiplexing (WDM) technologies are the cornerstone of this effort, allowing multiple data channels to travel simultaneously over a single fiber strand.
At Feiyi Optoelectronic, we specialize in designing and manufacturing a comprehensive portfolio of passive WDM components. From simple triplexing to ultra-dense channel multiplexing, our solutions enable scalable, reliable, and efficient optical networks. This guide will help you understand the core WDM technologies and identify the right Feiyi OEO products for your application.
Understanding the WDM Technology Spectrum
Each WDM technology serves a distinct purpose in the network architecture, balancing factors like channel count, reach, cost, and density.

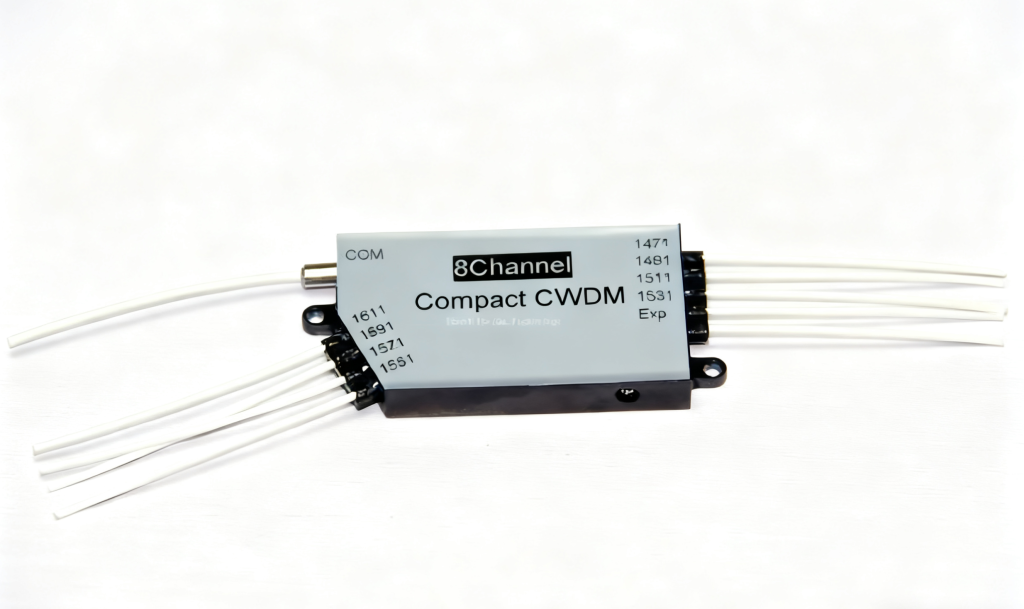

- CWDM (Coarse Wavelength Division Multiplexing): An economical solution ideal for short to medium-haul connections. With wider channel spacing (typically 20nm), it uses cost-effective, uncooled optics. Our CWDM Mux/Demux modules and OADMs are perfect for enterprise networks, campus backbones, and metropolitan area links.
- DWDM (Dense Wavelength Division Multiplexing): The technology of choice for high-capacity, long-haul transmission. DWDM packs channels tightly together (e.g., 100GHz, 50GHz spacing) in the C-band, supporting dozens to hundreds of wavelengths. Our DWDM modules and high-channel-count AAWGs form the backbone of telecom core networks and data center interconnects (DCI).
- FWDM (Filter Wavelength Division Multiplexing): A versatile technology based on Thin-Film Filter (TFF) design, perfect for combining or separating specific, often non-adjacent, wavelengths. Our 3-Port FWDMs are widely used in applications like optical amplifiers, CATV systems, and for adding specific service channels (e.g., 1310nm/1490nm/1550nm in PON networks).
- AAWG (Athermal Arrayed Waveguide Grating): This is a specific, advanced implementation of an AWG multiplexer. The key feature is its athermal design, which ensures stable optical performance across a wide temperature range without external power. Our AAWG modules are essential for robust, high-density deployments in challenging environments, such as outdoor cabinets for 5G fronthaul/midhaul.
Feiyi OEO Product Portfolio: Matching Technology to Your Need
Our product range is designed to provide a solution for every point in your network. The table below summarizes our key offerings and their ideal applications.
| Product Type | Key Technology | Featured Product Examples from Feiyi OEO | Primary Application Scenarios |
|---|---|---|---|
| CWDM Multiplexers | Thin-Film Filter (TFF) | 4CH, 8CH, 16CH Mux/Demux; 1U Rackmount | Enterprise LAN/MAN, Fiber exhaust relief, Cost-sensitive capacity upgrade |
| DWDM Multiplexers | Thin-Film Filter (TFF) & AAWG | DWDM Module (100/200GHz); 40CH/48CH AWG Module | Long-haul & ultra-long-haul transmission, Telecom backbone, High-capacity DCI |
| Optical Add-Drop Multiplexers (OADM) | TFF | CWDM OADM Module; 3-Port DWDM Device | Ring-based network architectures, Dropping/adding specific channels at a node |
| FWDM Devices | Thin-Film Filter (TFF) | 3-Port FWDM (e.g., 980/1550nm, 1480/1550nm) | EDFA amplification, CATV signal combining, FTTH/PON triple-play services |
| Athermal AWG (AAWG) | Athermal AWG | 40-CH/48-CH 100G AAWG; 96-CH 50G AAWG | High-density, temperature-stable multiplexing for outdoor, access, and metro nodes |
How to Select the Right Solution
Choosing the optimal WDM component depends on your specific network requirements:
- For Capacity and Reach: Start with your required data rate and transmission distance. For capacities beyond 10G or distances over 80km, DWDM solutions like our 40-CH AAWG become necessary. For lower-capacity, intra-city links, CWDM offers a simpler, more economical path.
- For Network Architecture: Point-to-point links can use standard Mux/Demux. For ring or mesh topologies where you need to selectively manage channels at intermediate sites, our CWDM/DWDM OADM modules are the key building blocks.
- For Environmental Stability: If your deployment is in an uncontrolled environment (e.g., street cabinet, aerial terminal), the passive, temperature-insensitive performance of our Athermal AWG (AAWG) modules is critical for maintaining network reliability without power-consuming heaters.
- For Specialized Functions: To combine pump lasers with signals in amplifiers or to manage specific service bands, our FWDM devices provide a compact, high-performance solution.
At Feiyi Optoelectronic, we don’t just supply components; we provide building blocks for smarter optical infrastructure. Our expertise in thin-film coating and micro-optics packaging ensures low insertion loss, high isolation, and superior reliability across our entire product line. Many of our products, including AAWG modules, are available in custom configurations (package type, connector, channel plan) to meet your precise system requirements.
Let’s build your capacity. Contact our technical sales team today to discuss your project and find the perfect WDM solution.
Note: All product specifications are subject to change. Please contact Feiyi OEO for the most current technical data sheets.
