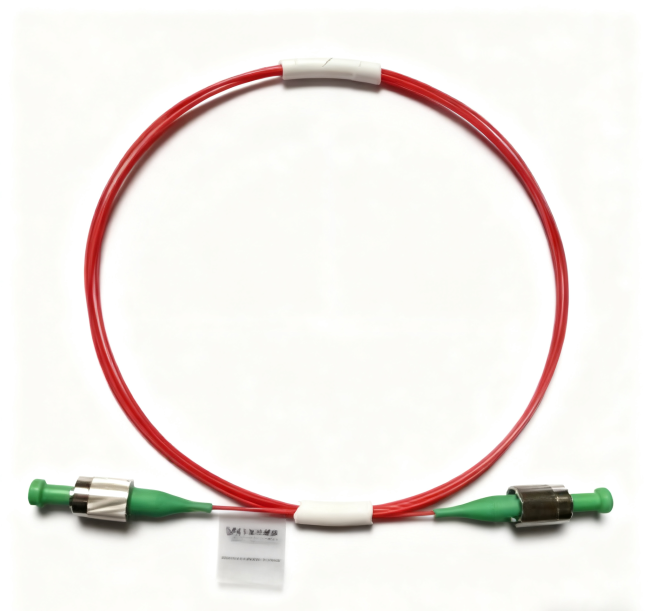

PM Fiber Patch Cords: The Critical Link in Polarization-Sensitive Systems
In the world of advanced fiber optics, transmitting light is one thing, but controlling its fundamental properties is another. For many high-performance applications, the polarization state of light isn’t just a characteristic—it’s the information carrier itself. This is where the standard fiber patch cord falls short and the specialized Polarization-Maintaining (PM) Fiber Patch Cord becomes indispensable. More than a simple cable, a PM patch cord is a precision-engineered component designed to preserve the linear polarization of light as it travels from one device to another, forming the reliable backbone of sensitive and complex optical systems.
Why Polarization Maintenance Matters
Standard single-mode fibers do not preserve polarization. Bends, stresses, and imperfections can randomly scramble the polarization state of light. In contrast, PM fibers have an intentionally asymmetric core design (using Panda, Bow-Tie, or Elliptical structures) that creates a “fast axis” and a “slow axis.” When light is launched into one of these principal axes, it remains aligned to that axis over long distances.
The PM patch cord extends this principle to system connectivity. Its job is to deliver light from a polarized source—like a laser, a modulator, or another PM component—to a receiver without degrading the polarization purity. The key metric here is the Extinction Ratio (ER), which measures how well the desired polarization state is maintained over the unwanted orthogonal state. A high ER is critical for system performance.
Anatomy of a High-Performance PM Patch Cord
Building a reliable PM patch cord requires precision at every stage:
- Precision Fiber Alignment: The core of the process is the angular alignment. The internal stress axis of the PM fiber must be rotationally aligned (“keyed”) with extreme accuracy to the connector ferrule. This ensures that when two PM connectors mate, their slow axes are perfectly aligned, minimizing polarization cross-talk.
- Connector and Ferrule Quality: Our patch cords utilize compact ceramic ferrule connectors. Ceramic provides excellent durability, thermal stability, and allows for high-precision polishing to achieve low Insertion Loss (IL) and high Return Loss (RL), ensuring minimal signal attenuation and back-reflection.
- Robust Cable Construction: The cable must protect the fragile PM fiber from external stresses, twists, and bends that could affect polarization stability. High-quality jacketing and strength members ensure excellent mechanical endurance.
Specifications and Customization Options
Our PM Fiber Patch Cords are available for all major wavelengths used in telecommunications, sensing, and laser systems. The table below summarizes the key options:
https://www.feiyi-oeo.com/product-category/polarization-maintaining/pm-fiber-patch-cord/
| Wavelength | Typical Connector Options | Primary Application Focus |
|---|---|---|
| 630 nm, 780 nm | FC, SC, LC, ST, MU, MTRJ | Quantum optics, biomedical sensing, research |
| 850 nm, 980 nm | FC, SC, LC, ST, MU, MTRJ | Pump laser delivery, short-reach data links |
| 1064 nm | FC, SC, LC, ST, MU, MTRJ | High-power YAG lasers, amplifier systems |
| 1310 nm & 1550 nm | FC/APC, SC/APC, LC/APC | Telecommunications (CATV, FTTH), fiber sensing |
Beyond Standard Specs: Full Customization
We understand that systems have unique needs. That’s why our PM patch cords are fully customizable:
- Connector Types: Choose from all standard interfaces (FC, SC, LC, ST, MU, MTRJ) in PC or APC polish types.
- Cable Length and Boot Color: Specify exact lengths and use colored boots for easy circuit identification in high-density panels.
- Performance Grades: Options are available for different Extinction Ratio (ER) and loss specifications to match your application’s sensitivity.
Critical Applications
PM patch cords are not for generic use; they enable specific, high-stakes technologies:
- Fiber Optic Gyroscopes (FOGs): The essential sensing element in navigation systems. Any polarization drift in the interconnected components directly translates to rotation measurement error.
- Coherent Optical Communications: Modern networks use advanced modulation formats (like DP-QPSK) that encode data in the light’s phase and polarization. PM cords connect the critical transmitter and receiver subsystems.
- Quantum Key Distribution (QKD): Many QKD protocols use photon polarization as a quantum bit (qubit). PM patch cords are necessary to deliver these photons without randomizing their quantum state.
- High-Power Laser Systems: Connecting a polarized laser source to an amplifier or delivery fiber requires a PM cord to maintain linear polarization, which is often crucial for efficient frequency conversion or material processing.
Selecting the Right PM Patch Cord
Choosing the correct cord is vital for system success. Consider these factors:
- Wavelength Compatibility: Ensure the cord is optimized for your system’s operating wavelength (e.g., 1550 nm for telecom, 1064 nm for YAG lasers).
- Extinction Ratio (ER): Match the ER specification to your system’s sensitivity. More demanding applications like FOGs require ER > 30 dB.
- Connector Interface: Select the type (LC, FC, etc.) and polish (APC for minimal reflection) that matches your equipment ports.
- Length and Durability: Choose an appropriate length to avoid tight bends or stress, and ensure the jacket is suitable for the operating environment.
Conclusion: The Foundation of Signal Integrity
In polarization-sensitive systems, every component in the chain must respect the integrity of the light’s state. The PM fiber patch cord is a fundamental link in this chain—a precision bridge that ensures the signal generated is the signal received.
Whether deployed in an undersea telecommunications cable, a satellite’s guidance system, or a secure quantum network, the right PM patch cord provides the reliability and performance that advanced photonics demand. By offering high-performance standards and extensive customization, we provide the essential connectivity solutions that allow engineers and researchers to focus on innovation, not on signal degradation.
Explore our comprehensive range of Polarization-Maintaining Fiber Patch Cords to find the perfect precision link for your application. Contact our technical team to discuss custom solutions for your specific system requirements.
