Precision Optical Engine for Fiber Optic Sensing: The PM Circulator + WDM Solution
In demanding fiber optic sensing applications—such as Distributed Acoustic Sensing (DAS) , Distributed Temperature Sensing (DTS) , and Interferometric Sensors—the integrity of the optical signal is paramount. At Feiyi Optoelectronic, we offer a tightly integrated solution built around high-performance Polarization-Maintaining (PM) components to ensure your system delivers maximum accuracy and stability.
🔷 The Core Components: A Synergistic Trio
| Component | Function in the Sensing System | Feiyi Advantage |
|---|---|---|
| PM Fiber Patch Cords | Serve as the fundamental “nerves” of the system, delivering the probe light to the sensing fiber and carrying the signal back with its polarization state intact. | High Extinction Ratio (>25dB) ensures minimal polarization cross-talk. Ultra-low insertion loss preserves signal strength over long distances. |
| PM Optical Circulator | Acts as the traffic director. It launches the source light from Port 1 to the sensing fiber at Port 2, and then routes the reflected signal from Port 2 to the detector at Port 3, enabling single-fiber measurement schemes. | High isolation (>40dB) prevents source light from interfering with the detector. Epoxy-free optical path guarantees long-term stability, even in fluctuating environments. |
| Wavelength Division Multiplexer (WDM) | Enables multi-parameter sensing and system optimization. It can combine or separate different wavelengths, for instance, to use one wavelength for data transmission and another for powering the sensor. | Low insertion loss & high channel isolation ensure clean separation of optical signals, which is critical for applications like FBG interrogators. |
🧠 How the Solution Works Together
This combination creates a powerful, flexible architecture for advanced sensing.

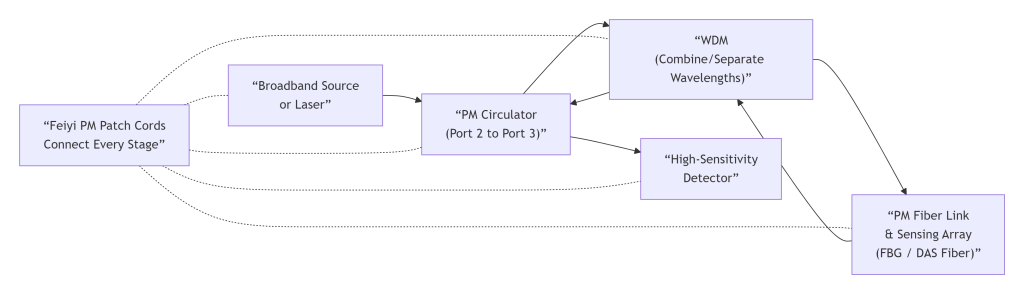

How the light travels:
- Launch & Route: A stable light source is sent via a PM Patch Cord into Port 1 of the PM Circulator. The circulator directs this light out of Port 2.
- Wavelength Management: Before reaching the sensor, the light may pass through a WDM to filter or combine specific wavelengths.
- Sensing & Return: The light interacts with the sensing array (e.g., FBGs or the fiber itself for DAS). The reflected or back-scattered signal, which carries the sensing information, travels back along the same path. It re-enters the PM Circulator at Port 2.
- Signal Extraction: The circulator’s non-reciprocal nature routes this returning signal out of Port 3 to a high-sensitivity detector, isolating it from the source.
✅ Why This Architecture Excels for Sensing
- Polarization Purity: By using PM components throughout, the system preserves the state of polarization, which is essential for coherent and interferometric sensing schemes. This directly translates to higher signal-to-noise ratios and more accurate measurements.
- Simplified, Robust Design: A single fiber can be used for both delivering the probe signal and receiving the response, simplifying field deployment and reducing costs.
- Environmental Stability: Feiyi’s epoxy-free optical path ensures that these components maintain their critical performance across wide temperature ranges, a necessity for industrial and outdoor sensing.
- Scalability: This core architecture can be scaled to create multi-channel, multi-parameter sensing networks, making it ideal for large-scale infrastructure monitoring.
📞 Partner with Feiyi for Your Sensing Infrastructure
From fiber optic gyroscopes (FOGs) for navigation to pipeline monitoring systems, our components form the reliable backbone of your sensing application.
- Product Page: Feiyi PM Circulator Series
- Website: www.feiyi-oeo.com
