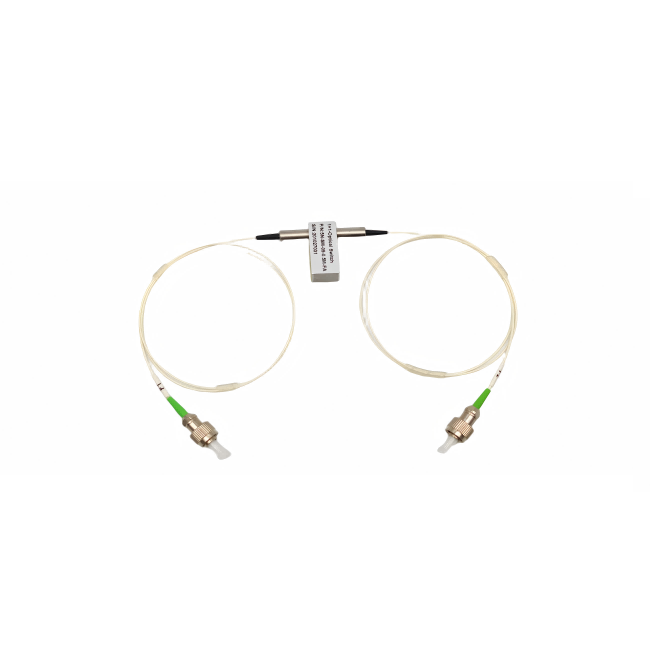

1×1 Mechanical Optic Switch
The 1×1 Mechanical optical switch is connected to the optical path by connecting or blocking the optical signal, the product is controlling by electrical signal to switch the optical path.
Showing all 7 results
-
-

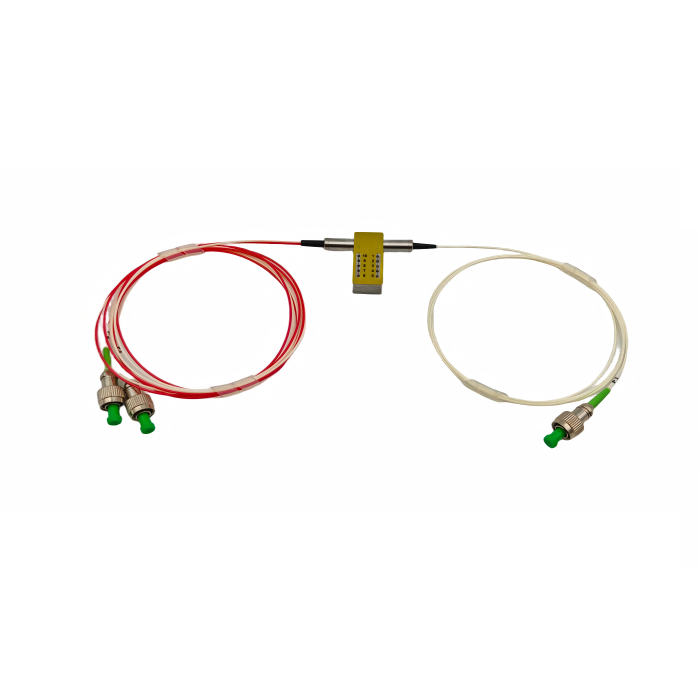

1×2 Mechanical Optic Switch
1×2 Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 1×2 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
-
1×4 Mechanical Optical Switch
1×4 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 4 output fibers. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedentedhighstabilityas wellas unmatchedlowcost.
Application
-

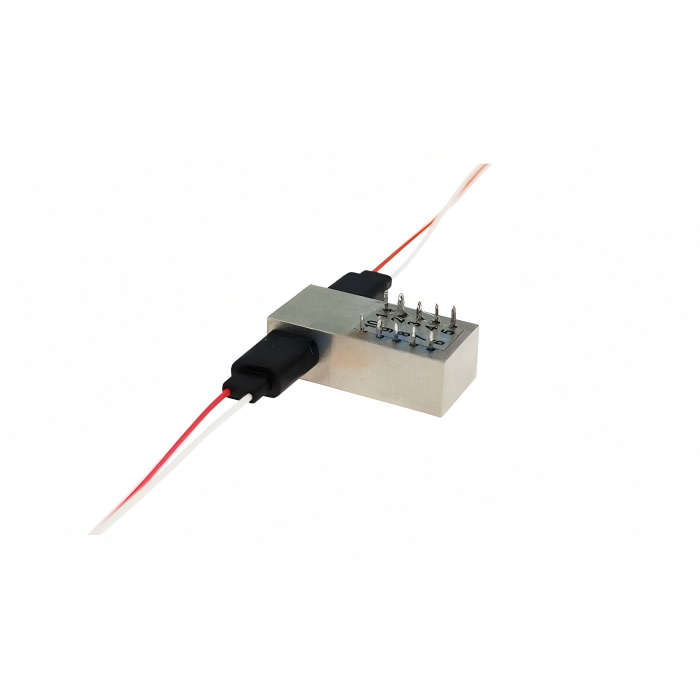

2X2 Full Optical Switch
2×2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.
-

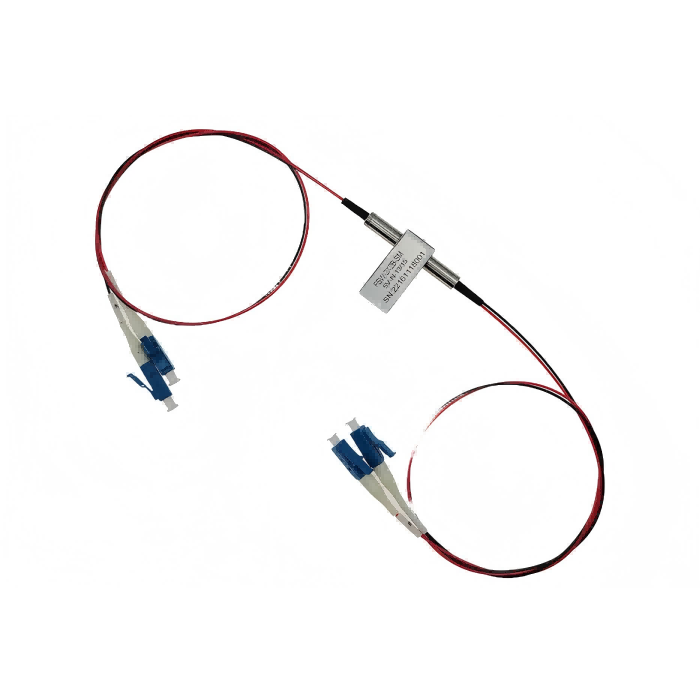

2x2B Mechanical Optic Switch
2x2B Opto-Mechanical Bi-directional Fiber Optic Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2B mechanical Fiber Optical Switch are true switching solution for optical networking applications, mainly used to realize optical path protection.
-

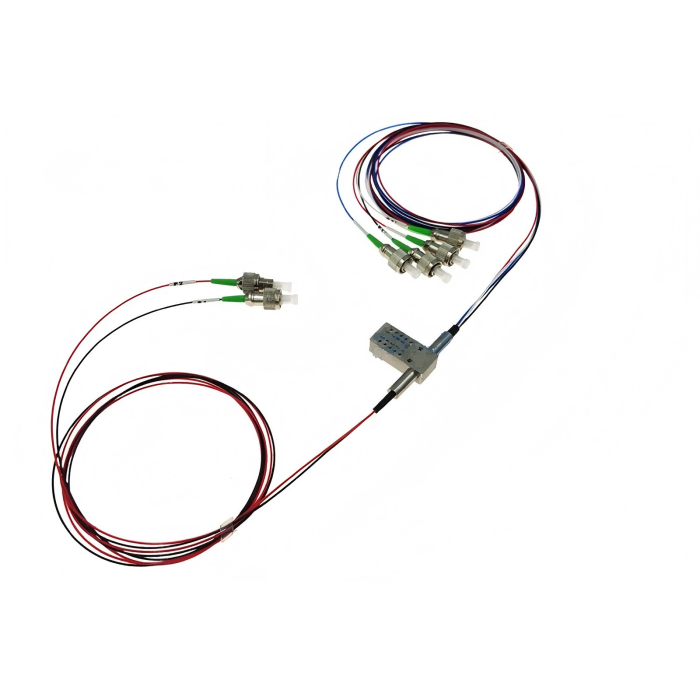

D1×2 Mechanical Optical Switch
Dual 1×2 Opto-Mechanical Bi-directional Fiber Optic Switch combine 2unit 1×2 Optical switch. Each 1×2 Optical Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. It is designed for use in optical fiber communication networks and measurement instruments.
-

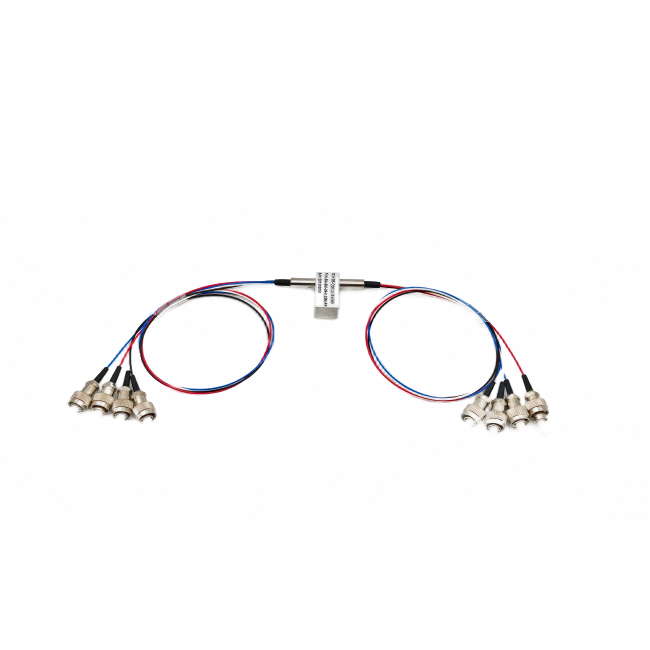

D2x2B Mechanical Optic Switch
Dual 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch combine 2unit 2x2B Optical switch. Each 2×2 Bypass Optical Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal.
D2x2B Optical Switch is mainly used to realize optical path protection.
