1.25G2.5G DWDM SFP Transceiver
The 1.25G/2.5G DWDM SFP Transceiver is a high-performance, hot-pluggable optical module designed for dense wavelength division multiplexing (DWDM) systems with 100GHz channel spacing. Supporting data rates of 1.25G and 2.5G over distances up to 80km, it is fully compliant with DWDM SFP MSA and SFF-8472 standards. Featuring a +3.3V single power supply and digital diagnostic monitoring (DDM), this transceiver is ideal for DWDM SONET/SDH, Ethernet, Fiber Channel, and high-speed router/server interfaces. Available in both commercial (0°C to +70°C) and industrial (-40°C to +85°C) temperature ranges, it offers reliable, flexible connectivity for demanding optical transmission networks.
Description
| Features |
| Compliant with DWDM SFP MSA |
| Suitable for use in 100GHz channel spacing DWDM systems |
| Compliant with SFP MSA and SFF-8472 with duplex LC receptacle |
| +3.3V single power supply |
| Compatible with RoHS |
| Operating case temperature range of 0°C to +70°C |
| (Commercial) or -40°C to +85°C (Industrial) |
| Applications |
| DWDM SONET/ SDH |
| Ethernet IEEE 802.3ae |
| Fiber Channel |
| Router/Server interface |
| Other optical transmission systems |
| Ordering Information |
| Part No | Data Rate | Distance | wavelength | Source | Connector type | DDM |
| XKSC-XX12-80BD | 1.25G | 80KM | DWDM | DFB/PIN | LC/PC | Y/N |
| XKSC-XX12-40BD | 1.25G | 40KM | DWDM | DFB/PIN | LC/PC | Y/N |
| XKSC-XX24-40BD | 2.5G | 40KM | DWDM | DFB/PIN | LC/PC | Y/N |
| XKSC-XX24-80BD | 2.5G | 80KM | DWDM | DFB/APD | LC/PC | Y |

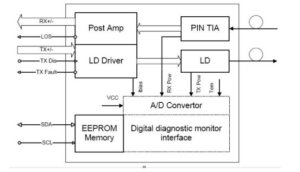

| Functional Diagram |
