1064nm SM Isolator

1064nm SM Isolator

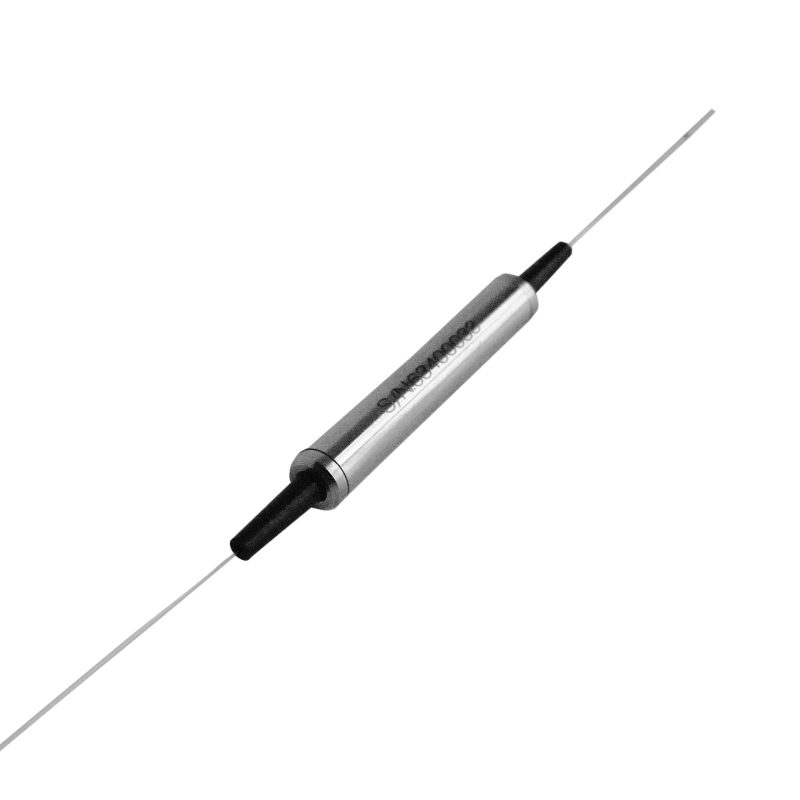

This single-stage single-mode optical isolator for 1064 nm provides high isolation and low insertion loss, ensuring reliable protection for laser sources against back reflections. Designed with low polarization-dependent loss and high return loss, it offers stable performance in a compact package.

Ideal for high-power laser systems, fiber amplifiers, and precision optical instrumentation, the isolator maintains consistent operation across specified temperature ranges. Custom configurations including fiber type, connector options, and fiber length are available to meet specific integration requirements.

Categories: ,

Description

Specifications

Parameter Unit Value
Stage – Single
Center Wavelength nm 1064
Operating Wavelength Range nm ±5
Typ. Peak Isolation at 23℃ dB 40
Min. Isolation at 23℃ dB 30
Typ. Insertion Loss at 23℃ dB 1.70
Max. Insertion Loss at 23℃ dB 2.0
Max.Polariztion Dependent Loss，23℃ dB 0.10
Min. Return Loss (input/output) dB 50/50
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type – Hi1060  Fiber 900μm loose tube
Connector Type – FC/APC
Package Dimension mm 5.5*35mm 或指定
Operating Temperature ℃ -5~+50
Storage Temperature ℃ -40~+85

For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

The default connector key is aligned to slow axis.



Package Dimensions

Ordering Information

Polarization-Maintaining (PM) Model:PMIS-1111-23-444-56-7-89

Single-Mode (SM) Model: PISO-1111-2-444-56-7-SS

1111 – Wavelength:  1550=1550nm, 1310=1310nm,1064=1064nm……
2 – Stage: S=Single-core stage, D=Dual-core stage
3 – Working Axis: B=Both axis working, F=Fast axis blocked      （普通光纤产品无此项）
444 – Fiber Type: 001=PM1550, 002=PM1310,004=Hi1060,  028=SMF-28E,SSS=Specify
5 – Package Dimension： 0=φ5.5x35mm, S=Specify
6 – Pigtail Type: 0=bare fiber, 1=900μm loose tube
7 – Fiber Length: 0.75=0.75m, 1.0=1m, 2.0=2m, S=Specify
8 – Connector Type for Input: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify
9 – Connector Type for Output: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify
