17-CH 150G Athermal AWG
This 17-Channel 150GHz Athermal AWG module provides reliable wavelength division multiplexing for O-band applications. It features low insertion loss, high channel isolation, and excellent thermal stability without requiring external power for temperature control.
Designed for WDM networks, telecommunications, and access networks, the module operates across 17 ITU-grid channels with precise wavelength accuracy. Its compact, robust design ensures consistent performance in varied environmental conditions. Custom configurations including package type, connector style, and channel plan are available to meet specific system requirements.
Description
Features & Applications
| Features | Applications |
| Low Insertion Loss | WDM Network |
| Wide pass band | Telecommunication |
| High Channel Isolation | Access Network |
| High Stability and reliability |
Absolute Maximum Ratings
| Parameter | Conditions | Specifications | Unit | |
| MIN. | Max. | |||
| Operating Temperature | Non-Condensing Environment | -40 | 85 | ℃ |
| Operating Humidity | 0 | 90 | %RH | |
| Storage Temperature | Device Not Powered on Heater Element | -40 | 85 | ℃ |
| Storage Humidity | Device Not Powered on Heater Element | 0 | 90 | %RH |
Optical Specifications
| Parameter | Specification | Units | Notes | |||
| MIN | Typ | Max | ||||
| Channel Spacing | 150 | GHz | ||||
| Nos of Channel | 17 | Channels | ||||
| Channel Frequencies | ITU Grid | THz | ||||
| Available Channel Frequency Range | 233.6 | 231.2 | THz | |||
| Channel Passband | GHz | -18.75 | 18.55 | GHz | ||
| nm | -0.1 | 0.1 | nm | |||
| Center Wavelength Accuracy | -0.05 | 0.05 | nm | |||
| Insertion Loss | COM-AWG | 2 | 2.5 | dB | @Center Wavelength | |
| 2.8 | 3 | dB | Full Bandwidth | |||
| Bandwidth @1.0dB | 0.23 | nm | ||||
| Bandwidth @3.0dB | 0.42 | nm | ||||
| Bandwidth @20dB | 1.2 | nm | ||||
| Insertion Loss Uniformity at ITU | 1.2 | dB | ||||
| Polarization Dependent Loss | 0.5 | dB | ||||
| Adjacent Channel Isolation | 27 | 30 | dB | |||
| Non-Adjacent Channel Isolation | 30 | 35 | dB | |||
| Total Cross Talk | 24 | 26 | dB | |||
| Directivity | 45 | dB | ||||
| Return Loss with connectors | 40 | 45 | dB | |||
| Chromatic Dispersion | -20 | +20 | ps/nm | |||
| PMD | 0.5 | ps | ||||
| Optical Power Handling of Common Port | 25 | dBm | ||||
Channel Plan 17 Port AWG – On Grid
The AWG operate in O-band. The channels are as follows:
| Channel No. | Frequency (THz) | Wavelength (nm) | Channel No. | Frequency (THz) | Wavelength (nm) |
| 1 | 233.6 | 1283.358 | 10 | 232.25 | 1290.818 |
| 2 | 233.45 | 1284.183 | 11 | 232.1 | 1291.652 |
| 3 | 233.3 | 1285.008 | 12 | 231.95 | 1292.487 |
| 4 | 233.15 | 1285.835 | 13 | 231.8 | 1293.324 |
| 5 | 233.0 | 1286.663 | 14 | 231.65 | 1294.161 |
| 6 | 232.85 | 1287.492 | 15 | 231.5 | 1295.000 |
| 7 | 232.7 | 1288.322 | 16 | 231.35 | 1295.839 |
| 8 | 232.55 | 1289.153 | 17 | 231.2 | 1296.680 |
| 9 | 232.4 | 1289.985 | 18 |
Physical Parameters
| Parameter | Type | Units |
| Length | 100 | mm |
| Width | 80 | mm |
| Height | 9 | mm |
| Length of Input fiber | 900 | mm |
| Length of Output Fibers | 1000 | mm |
| Number of Input Fiber | 1 | |
| Number of Output Fibers | 17 |
Ordering Information
| AAWG | XX | X | X | X | XX | XXX | X | X |
| AAWGM | Package | Module Type | Channel Space | Space Profile | Channel Number | Start Channel | Com | Pass |
| A=Athermal | 1U=1U | M=Mux | 1=100GHz | F=Flat-top | 32=32 | C17=C17 | C21=C21 | 0=None |
| A=Array | 2U=2U | D=Demux | 2=50GHz | F=Flat-top | 40=40 | C21=C21 | 1=FC/UPC | 1=FC/UPC |
| W=Wavelength | ST=Box | 1=Mux and Demux | 48=48 | O01=O01 | 2=FC/APC | 2=FC/APC | ||
| G=Grating | 3=SC/UPC | 3=SC/UPC | ||||||
| M=Module | 4=SC/APC | 4=SC/APC | ||||||
| 5=LC/UPC | 5=LC/UPC | |||||||
| 6=LC/APC | 6=LC/APC |

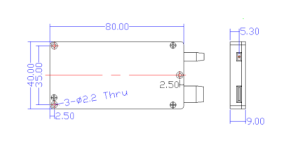

Package Drawing
Unit : mm
