1U Modular High-Density Fiber Optic Patch Panel (CommScope Compatible)
This MPO fiber optic chassis is designed for high-density fiber optic patching and management in data centers, server rooms, and telecommunications installations. Fully compatible with CommScope patch panels, it features a convenient drawer-style design that operates smoothly without the need for mounting rails, ensuring easy installation, access, and maintenance. The chassis supports flexible configurations with interchangeable adapter panels (6–72 fibers) and integrated SC (12–48 fibers) or LC (24–96 fibers) adapter panels, making it a versatile solution for various fiber connectivity needs.
Description
Compatible with CommScope patch panels, rack-mountable with pull-out design (no guide rails)

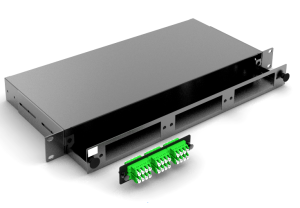

3-position interchangeable panel (6-72 cores)
|

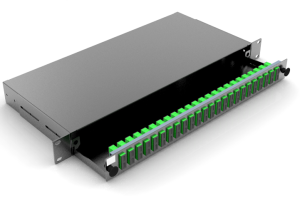

Integrated 12-48 core SC panel
|

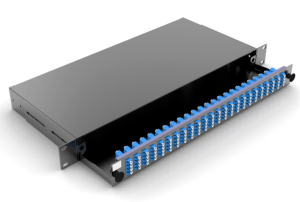

Integrated 24-96 core LC panel
|

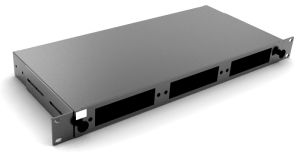

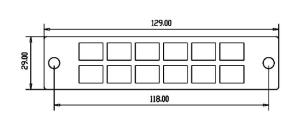

Rack Structure Dimension Drawing:
| Model | Core Count | Flange Type | Product Diagram & Quantity | ||
| LC | 12 cores | LC Duplex Connector |  |
 |
 |
| 1 pcs | 2 pcs | 1 unit | |||
| LC | 24 cores | LC Duplex Connector | |
|
|
| 2 pcs | 1 pcs | 1 unit | |||

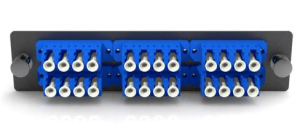

| LC | 36 cores | LC Duplex Connector | |
|
|
| 3 pcs | 1 unit | ||||
| LC | 48 cores | LC Duplex Connector |  |
|
|
| 2 pcs | 1 pcs | 1 unit | |||
| LC | 72 cores | LC Duplex Connector | |
|
|
| 3 pcs | 1 unit | ||||

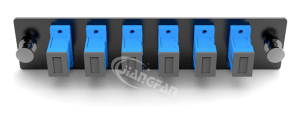

| SC | 6 cores | SC Connector |  |
|
|
| 1 pcs | 2 pcs | 1 unit | |||
| SC | 12 cores | SC Connector | |
|
|
| 2 pcs | 1 pcs | 1 unit | |||
| SC | 18 cores | SC Connector | |
|
|
| 3 pcs | 1 unit | ||||

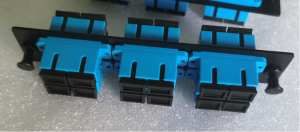

| SC | 24 cores | SC Connector |  |
|
|
| 2 pcs | 1 pcs | 1 unit | |||
| SC | 36 cores | SC Connector | |
|
|
| 3 pcs | 1 unit | ||||
