1×2 FSW OSW 850NM
The 1×2 FSW OSW 850nm is a compact and cost-effective 1×2 fiber optic switch designed for reliable optical signal routing and network protection at 850nm wavelength. Featuring low insertion loss (0.5 dB typical), high channel isolation, and an epoxy-free optical path, it ensures high stability and long-term performance. This latching or non-latching switch supports multimode fiber applications and is widely used in optical network protection/restoration, signal routing, configurable optical add/drop, and transmitter/receiver protection. With a power supply option of 3.0V or 5.0V, operating temperature range of -20°C to +75°C, and multiple connector and fiber length options, it offers flexible integration for various optical test and communication systems.
Description
| Features | Applications |
| Low Insertion Loss | Optical Network |
| Unmatched Low Cost | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High stability and reliability | Configurable Optical Add/Drop |
| Epoxy free on optical path | Transmitter and receiver protection |
| Latching and Non-latching | Network Test System |
| Performance Specifications |
| Parameter | FY-1×2-MM/SM | |
| Wavelength Range（nm） | 850±40 | 1260~1650 |
| Operating Wavelength | 850 | 1310/1490/1550/1625/1650 |
| Insertion Loss（dB） | Typ:0.5 Max:0.8 | Typ:0.5 Max:0.8 |
| Return Loss（dB） | MM≥30 SM≥50 | |
| Crosstalk（dB） | MM≥35 SM≥55 | |
| Polarization Dependent Loss（dB） | ≤0.05 | |
| WaveLength Dependent Loss（dB） | ≤0.25 | |
| Temperature Dependent Loss（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Power Supply（V） | 3.0 or 5.0 | |
| Lifetime（time） | ≥10^7 | |
| Switch Time（ms） | ≤8 | |
| Transmission Power（mW） | ≤500 | |
| Operating Temperature(℃) | -20~+75 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |

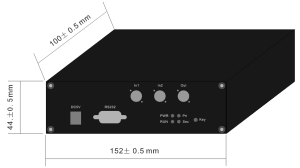

| Dimension（mm） | 100*44*152 | |
Programmed Instruction Set
| Command | Description | Example |
| <OSW_RESET> | Module reset (i.e., restart) | |
| <RESUME> | Restore factory settings | |
| <OSW_INFO_?> | Query module information: <OSW_INFO_TYPE_Model_SN_ERP code_Hardware version_Software version> |
Successful return: <OSW_INFO_TYPE:FSW-1X2-FCPC-RS232-13/15-SM_SN:1234567890 1_ERP:CO6.06.00004_HW:V2.00_SV:V1.00> |
| <OSW_SW_x> | Set current channel x values: 0, 1,? 0 means bypass (Sec light on), channel is In2→Out; 1 means main path (Pri light on), channel is In1→Out;? means query; |
Send: <OSW_SW_1> Successful return: <OSW_SW_1_OK> Indicates setting channel to In1→Out; Send: <OSW_SW_?> Successful return: <OSW_SW_0> Indicates current channel is In2→Out; |
| <OSW_KEY_x> | Button enable switch; x values: 0, 1,?; 0 means disable, 1 means enable,? means query; |
Send: <OSW_KEY_0> Successful return: <OSW_KEY_0_OK> Indicates disable button; |
| DC5V power interface, RS232 interface (female), FCPC optical fiber interface, indicators, buttons, etc.; |
| Description of indicator status: |
| PWR: Module power status. When the light is on, it indicates normal power supply; when the light is off, it indicates abnormal power supply. |
| RUN: Module working status. When it flashes, it indicates the module is working normally; otherwise, it is abnormal. |
| Pri: Optical path channel status. When the light is on, it indicates the channel is In1→Out; |
| Sec: Optical path channel status. When the light is on, it indicates the channel is In2→Out; |
| Ordering Information |
| Wavelength | Switch Type | Voltage | Fiber Type | Connector | Fiber length | Package |
| 1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610＝A 1310/1550＝9 850＝8 Spcial＝0 |
Latching＝1 Non-latching 2 MINI Latchi ng＝3 MINI Non-la tching＝4 Special＝0 |
3V=3 5V=5 Special=0 |
SM28=1 50/125=5 62.5/125=6 Special＝0 |
FC/PC FC/APC SC/PC SC/APC ect. |
0=0.5m 1=1m 2=2m ect. |
Bare fiber=1 900um tube=3 Special＝0 |

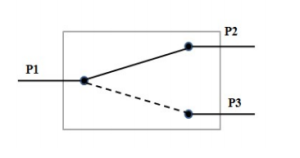

| Optical Route |
