1×4 Mechanical Optical Switch
1×4 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 4 output fibers. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedentedhighstabilityas wellas unmatchedlowcost.
Application
Description
Application
| Application Scenarios |
| Instrumentation, testing, and measurement |
| Metropolitan Area Network |
| Network protection and restoration |
| R&D in Laboratory |
Technical Index
| Parameter | Unit | Typical Value |
| Product Type | – | 1×4 T Type Switch |
| Operation Wavelength | nm | 850nm or 1310/1490/1550nm |
| Insertion Loss | dB | <0.8 |
| Wavelength Dependent Loss | dB | <0.2 |
| Polarization Dependent Loss | dB | <0.2 |
| Return Loss | dB | SM: >55 MM:>40 |
| Cross Talk | dB | SM: >55 MM:>40 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | – | Latching / Non-Latching |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 27L x 23W x 8.2H |
Pin Definition
| Type | State | Optical Route | Electric Drive | Status Sensor | ||||||||||||||
| Relay 1 (Pin) | Relay 2 (Pin) | Relay 1 (Pin) | Relay 2 (Pin) | |||||||||||||||
| 1 | 5 | 6 | 10 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | 2-3 | 3-4 | 7-8 | 8-9 | |||
| 1×4 | A | COM-P1 Black | – | – | GND | V+ | V+ | GND | – | – | close | open | open | close | open | close | close | open |
| Latching | B | COM-P2 Red | V+ | GND | – | – | – | – | GND | V+ | open | close | close | open | close | open | open | close |
| C | COM-P3 Blue | – | – | GND | V+ | – | – | GND | V+ | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | GND | – | – | V+ | GND | – | – | open | close | close | open | open | close | close | open | |
| Non-Latching | A | COM-P1 Black | – | – | – | – | V+ | – | – | GND | close | open | open | close | open | close | close | open |
| B | COM-P2 Red | V+ | – | – | GND | – | – | – | – | open | close | close | open | close | open | open | close | |
| C | COM-P3 Blue | – | – | – | – | – | – | – | – | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | – | – | GND | V+ | – | – | GND | open | close | close | open | open | close | close | open | |

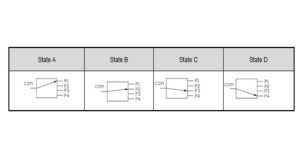

Route States
Ordering Information
| Type | Wavelength | Control Model | Voltage | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| 14=1×4 | 1=1060nm 2=850nm 3=1310nm 4=1550nm 35=1310&1550nm 345=1310/1490/1550nm B=1260~1620nm X=Special |
L=Latching N=Non-Latching |
3=3V 5=5V |
1=SMF-28 X=Special |
25=250um 90=900um X=Others |
1=0.5m 2=1m 3=1.5m X=Other |
00=None LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
