64 fiber pigtail
The 64 Fiber Pigtail is a high-density fiber optic solution designed for reliable performance in a wide range of applications. It features low insertion loss, wide bandwidth, and minimal polarization-dependent loss, with an epoxy-free optical path to ensure long-term stability. Available in both P and A grades, the pigtail supports wavelengths from 1250 nm to 1650 nm, including common bands such as 1310 nm and 1550 nm, and is compatible with SMF-28e single-mode fiber. Ideal for use in isolators, circulators, WDM systems, optical sensing, VR, and fiber optic slip rings, it offers flexible ordering options with various connector types and fiber lengths to suit different installation needs.
Description
Features & Applications
| Features | Applications |
| Low Insertion Loss | Isolators |
| Wide Pass Band | Circulators |
| Low PDL | Switches |
| High Stability and Reliability | WDM |
| Epoxy Free on Optical Path | Signal Processing |
| Optical Sensing | |
| VR | |
| Optical Fiber Slip Ring |
Performance Specifications
| Parameters | P Grade | A Grade |
| Wavelength (nm) | 1310nm、1550nm、850nm、1250-1650nm | |
| Insertion Loss (Typ.) (dB) | 0.18 | 0.2 |
| Insertion Loss (Max.) (dB) | 0.21 | 0.25 |
| Return Loss (dB) | 65 | 62 |
| Beam Diameter (mm) | < 0.5 | |
| Operating Temperature (°C) | -20℃~＋75℃ | |
| Storage Temperature (°C) | -40℃~＋85℃ | |
| Optical Fiber Model | SMF-28E、ZBL、LBL | |
| Polarization Dependent Loss (dB) | ≤0.15 | |
| Directivity (dB) | ≤0.1 | |
| Maximum Power Handling (mW) | 500 | |

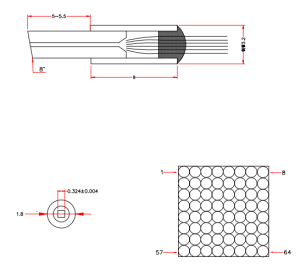

| Dimensions (mm) | 1.8×6.5 | |
Ordering Information
| Type | Coating | Wavelength | Fiber Type | Connector | Fiber Length |
| φ1.8 | Antireflective Film | 850nm | 1=Bare fiber | FC/PC | 0=0.5m |
| 1310nm | 2=900um Loose tube | FC/APC | 1=1m | ||
| 1550nm | SC/PC | 2=2m | |||
| 980nm | SC/APC | ect. | |||
| 1250-1650nm | ect. |
