96-CH 50G Athermal AWG

This 96-Channel 50GHz Athermal AWG (Arrayed Waveguide Grating) module offers high-density wavelength multiplexing and demultiplexing with excellent thermal stability. Designed for operation in the C-band, it provides low insertion loss, high channel isolation, and reliable performance without the need for external power or temperature control.

Ideal for WDM networks, telecommunications, and access networks, the module supports 96 channels with precise wavelength stability. Its compact design and athermal characteristics ensure consistent operation across varying environmental conditions. Custom configurations including fiber type, connector options, and fiber length are available to meet specific system requirements.

Categories: , , Tag:

Description

Features & Applications
Features Applications
Low Insertion Loss  WDM Network
Wide pass band Telecommunication
High Channel Isolation Access Network
High Stability and reliability
Absolute Maximum Ratings
Parameter Conditions Specifications Unit
MIN. Max.
Operating Temperature Non-Condensing Environment -5 65
Operating Humidity 5 85 %RH
Storage Temperature Device Not Powered on Heater Element -40 85
Storage Humidity Device Not Powered on Heater Element 5 95 %RH
Optical Specifications
Parameter Specification Units Notes
MIN Typ Max
Channel Spacing 50 GHz
Nos of Channel 96 CH
Channel Frequencies  C-band nm
Clear Channel Passband ±6.25 Ghz
Wavelength Stability ±0.05 nm
Bandwidth @1.0dB 0.2 nm
Bandwidth @3.0dB 0.28 nm
Optical Insertion Loss at ITU grid 1.2 dB
Adjacent Channel Isolation 25 dB
Non-Adjacent Channel Isolation 30 dB
Total Cross Talk 20 dB
Insertion Loss Uniformity 0.8 1.3 dB
Directivity 40 dB
Return Loss with connectors 40 dB
Polarization Mode Dispersion 1 ps
Chromatic Dispersion -20 +20 ps/nm
PMD 0.3 0.5 ps
Maximum Input Optical Power 500 mW
Channel Plan 17 Port AWG – On Grid

The AWG operate in O-band. The channels are as follows:

Channel No. Frequency (THz) Wavelength (nm) Channel No. Frequency (THz) Wavelength (nm)
1 233.6 1283.358 10 232.25 1290.818
2 233.45 1284.183 11 232.1 1291.652
3 233.3 1285.008 12 231.95 1292.487
4 233.15 1285.835 13 231.8 1293.324
5 233.0 1286.663 14 231.65 1294.161
6 232.85 1287.492 15 231.5 1295.000
7 232.7 1288.322 16 231.35 1295.839
8 232.55 1289.153 17 231.2 1296.680
9 232.4 1289.985 18
Mechanical Dimensions, Fiber Coding and Connector Specifications

Parameter Specification Unit
Dimensions 120 × 70 × 10.5 mm
Fiber Type • Common: SMF-28e, 900um tube
• Channels: SMF-28e Ribbons
Fiber Length • Common: 1000±50mm
• Channels: 500±20mm + 500±30mm
Fiber Color White
Ribbon Identification Label with ribbon number will be placed close to end-points
Connector Options • Common: LC/UPC
• Channels: LC/UPC
Fiber Identification in Ribbon Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Ordering Information

AAWG XX X X X XX XXX X X
AAWGM Band Module Type Channel Space Space Profile Channel Number Start Channel Fiber Length(Total Length) Pass
A=Athermal C=C-Band M=Mux 1=100GHz G=Gaussian 32=32 C62=C62 1=0.5M 0=None
A=Array L=L-Band D=Demux 2=50GHz F=Flat-top 40=40  H62=H62 2=1M 1=FC/UPC
W=Wavelength D=C+L-Band 1=Mux and Demux 5=50GHz X=Special 48=48 C60=C60 3=1.5M 2=FC/APC
G=Grating 16=16 H59=H59 4=2M 3=SC/UPC
M=Module 96=96 X=Specifl 4=SC/APC
XX=Specifl 5=LC/UPC
6=LC/APC

Customized design available

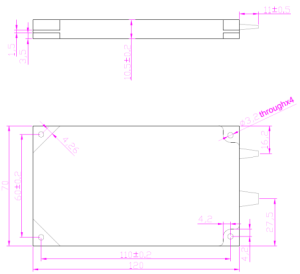

Unit: mm

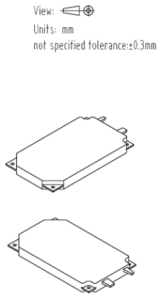

Package size
