MPO MTP Optical Patch Cord
Description
| Features | Applications |
| MPO connector complied with IEC-61754-7 | SAN (Storage area Network)data center LAN |
| A quick-to-deploy | LAN/SAN switch equipment distribution area(EDA) |
| Scalable solution | Emerging 40G and 100G protocol |
| High compatibility,flexibility&system performance | |
| Lower installation cost |
Performance Specifications
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss(dB) | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 |
| Maximun | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability(dB） | ≤0.3 | ||||||
| Durability（dB） | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||
| Tensile Strength（dB） | ≤0.3dB (Max 66N) | ||||||
| Operating temperature（℃） | -20~+60 | ||||||
| Storage temperature（℃） | -40~+80 | ||||||

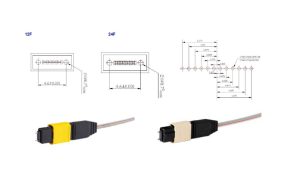

MT Ferrule(Male&FEmale)
| Cable type | Description |
 |
Round housing Kits Female and Male—-Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
| MPO connector Length 60.2mm | |
| Cable Boot 3.0mm or 3.6mm | |
| Female & Male MM boots Color—Beige, Aqua, Black, White…Special | |
| Female& Male SM boots Color—Green, Yellow, Mustard…..Special | |
 |
Oval housing Kits Female and Male—-Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
| MPO connector Length 45.6mm | |
| Female & Male MM boots Color—Beige, Aqua, Black, White…Special | |
| Female& Male SM boots Color—Green, Yellow, Mustard…..Special | |
 |
Bare Ribbon Housing Kits Female and Male—-Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
| MPO connector Length 43.0mm | |
| Female & Male MM boots Color—Beige, Aqua, Black, White…Special | |
| Female& Male SM boots Color—Green, Yellow, Mustard…..Special |

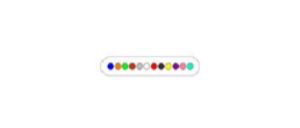

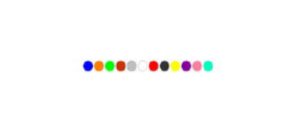

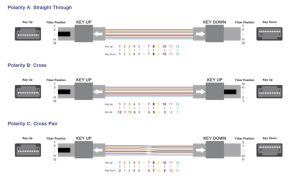

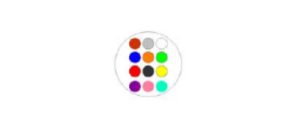

MPO Communication Marks Division
