OSW-11×10
The OSW-11×10 is a high-port-density, rack-mounted optical switch designed for reliable and flexible routing in optical networks. It supports 11 input and 10 output channels, operating at standard wavelengths of 1310 nm and 1550 nm with low insertion loss and high isolation. Featuring LC/PC connectors and single-mode fiber compatibility, it offers versatile control via RS-232 or Ethernet interfaces. Ideal for applications in optical protection, signal monitoring, and test automation, this 2U chassis ensures robust performance in a wide temperature range and simplifies integration into existing communication systems.
Description
Technical Parameters
| Model | OSW-11×10 |
|---|---|
| Operating Wavelength | 1310nm / 1550 nm |
| Test Wavelength | 1310nm / 1550 nm |
| Insertion Loss | MAX ≤ 15 dB |
| Repeatability | ≤ ±0.1 dB |
| Return Loss | ≥ 50 dB |
| Crosstalk | ≥ 55 dB |
| Wavelength-Dependent Loss | ≤ 0.4 dB |
| Polarization-Dependent Loss | ≤ 0.2 dB |
| Fiber Type | SM (9/125μm) |
| Connector Type | LC/PC |
| Monitoring Ports | RJ45, RS232 |
| Operating Power Supply | AC: 220 V (50/60Hz) |
| Operating Temperature | -20 ～ + 60℃ |
| Storage Temperature | -40 ～ + 80℃ |
| Chassis Type | 19-inch standard 2U rack (483×303×89mm) |

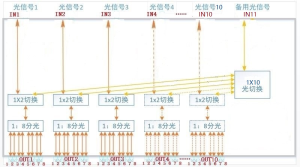

Internal Optical Path
Panel Description
Front Panel Description
（1）Run Indicator: Blinks once per second when the device is working normally.
（2）Power Indicator: Remains on when the device is powered normally.
（3）IN1~IN11 Indicators: Light up when the corresponding input channel is selected; turn off otherwise.
（4）Reset Button: Resets the optical path to the main channel.
（5）RJ45 Ethernet Port & RS232 Serial Port: Communication interfaces for transmitting device monitoring data.
（6）Optical Interfaces: All optical interfaces on the panel are LC/PC type. Among them, IN1 ~ IN11 are optical input interfaces, and OUT1 ~ OUT10 are groups of optical output interfaces (each group contains 8 interfaces).
Rear Panel Description
（1）AC 220V Power Interface: Power input interface for the device.
（2）AC 220V Power Switch: Power switch for the device.
