PLC Splitter -ABS Box
Reliable PLC Splitters housed in durable ABS boxes, designed for a wide range of optical network applications. These splitters deliver low insertion loss, excellent uniformity, and high stability across operating wavelengths from 1260nm to 1650nm. Ideal for FTTX, PON, CATV, and optical distribution systems, they ensure consistent performance in temperatures from -40℃ to 85℃. Available in various configurations (1×N and 2×N), with options for fiber type, connector, and length to meet specific customer requirements.
Description
Features & Applications
| Features | Applications |
| Low Insertion loss | FTTX Systems |
| Good channel-to-channel uniformity | PON Networks |
| Low PDL | Optical Signal Distribution |
| High stability and reliability | CATV Links |
| Wide Operating Wavelength: From 1260nm to 1650nm | |
| Wide Operating Temperature: From -40℃ to 85℃ |
Specifications: 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength（nm） | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformity（dB） | 0.4 | 0.6 | 0.8 | 1 | 1.5 | 2 | 2.4 |
| Polarization Dependent Loss（dB） | 0.2 | 0.2 | 0.2 | 0.24 | 0.3 | 0.34 | 0.4 |
| Return Loss(dB)（P/S Grade） | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity（dB） | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss（dB） | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85℃)（dB） | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Device Dimension（mm） | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
| Module Dimension（mm） | 100×80×10 | 120×80×18 | 141×115×18 | ||||
| Mini-Module Dimension（mm） | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A | ||
Specifications: 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength（nm） | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.9/4.1 | 7.2/7.4 | 14.2/14.5 | 17.5/17.7 | 21.1/21.6 | 21.0/21.5 | 23.8/24.2 |
| Loss Uniformity（dB） | 0.55 | 1 | 1.1 | 1.4 | 1.7 | 2.1 | 2.4 |
| Polarization Dependent Loss（dB） | 0.2 | 0.2 | 0.2 | 0.28 | 0.3 | 0.34 | 0.4 |
| Return Loss(dB)（P/S Grade） | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Directivity（dB） | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss（dB） | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85℃)（dB） | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Fiber Length (m) | 1.5(±0.1) or customer specified | ||||||
| Operating Temperature(℃) | -20~+75 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Maximum Power Handling (mW) | 500 | ||||||
Bare Fiber Type Dimensions（mm）
| Configuration (1×N) | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| （L×W×H）(nm) | 100×80×10 | 120×80×18 | 140×115×18 | ||
| Configuration (2×N) | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| （L×W×H）(nm) | 100×80×10 | 120×80×18 | 140×115×18 | – | |
Ordering Information
| Product | PLC Device | Fiber Type | Connector | Fiber Length |
| 1=1×2 | 1=Bare fiber | FC/PC | 0=0.5m | |
| 2=1×4 | 2=900um Loose tube | FC/APC | 1=1m | |
| 3=1×8 | SC/PC | 2=2m | ||
| 4=1×16 | SC/APC | ect. | ||
| ect. |

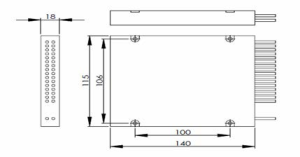

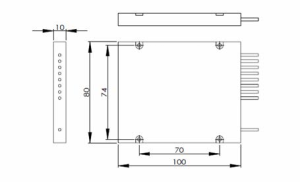

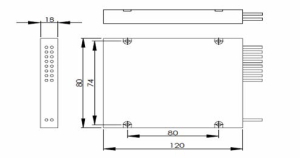

Box size
