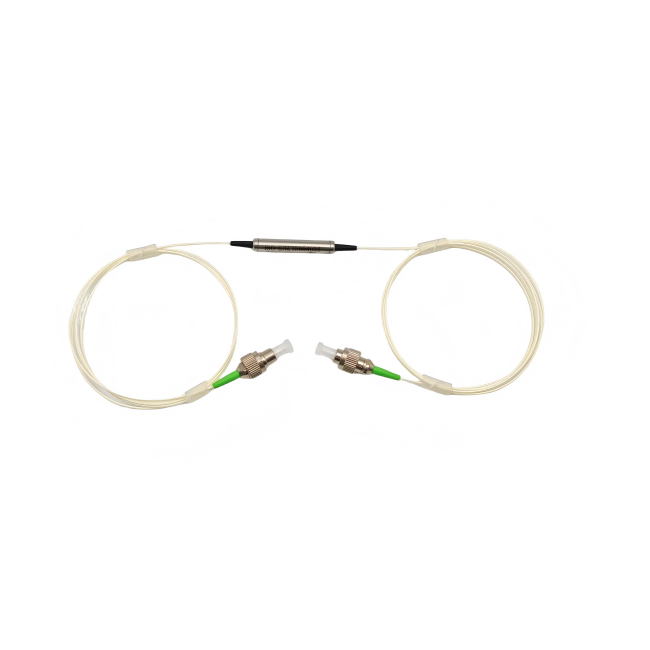

Polarization-Insensitive Optical Isolator
Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device’s high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
Description
| Features | Applications |
| High Isolation | Fiberoptic Amplifiers |
| Low Insertion Loss | CATV Fiberoptic Links |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Telecommunications |
Performance Specifications
| Parameter | Unit | Spec | |
| Wavelength | nm | 1310 or 1550 | |
| Bandwidth | nm | ±15 | |
| Stage | / | Single stage | Dual Stage |
| Typical Insertion Loss | dB | 0.35 | 0.4 |
| Max Insertion Loss | dB | ≤0.55 | ≤0.6 |
| Peak Isolation | dB | 42 | 56 |
| Min. Isolation | dB | ≥28 | ≥46 |
| Return Loss | dB | ≥60/55 | |
| PDL | dB | ≤0.05 | |
| Power | mW | 300 | |
| Fiber Type | / | SMF-28e | |
| Operating Temperature | ℃ | -5~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Package | mm | Φ5.5×35 | |
Notic: 1. Customized is available。
- Above specification are for device without connector, if add connector, the IL add 0.2dB.
Ordering Information
| Isolator | Stage | Wavelength | Package | Fiber Type | Fiber Length | Connector |
| ISO=Isolator | S=Single Stage
D=Dual Stage |
13=1310nm
15=1550nm |
S1=Φ5.5x35mm
A0=90x20x10mm X=Others |
25=250um
90=900um 20=2.0mm 30=3.0mm X=Others |
05=0.5m
10=1.0m 15=1.5m X=Others |
OO=None
FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC X= Others |
