Custom Polarization-Maintaining (PM) Fiber Patch Cords – Precision Connectivity for Demanding Applications
Our Polarization-Maintaining (PM) Fiber Patch Cords are engineered to deliver exceptional performance in applications requiring stable polarization states. Designed with compact ceramic ferrule connectors, these patch cords ensure low insertion loss, high return loss, and excellent mechanical durability. They are ideal for telecommunications, CATV, FTTH, LAN, fiber optic sensing, and high-precision test equipment.
Available in a wide range of wavelengths—including PM630, PM780, PM850, PM980, PM1064, PM1310, and PM1550—these patch cords support precise polarization alignment and can be fully customized. Choose from connector types such as FC, SC, LC, ST, MU, or MTRJ, and select your preferred boot colors and cable lengths to meet specific system requirements.
Trust our PM fiber patch cords for reliable, high-density connectivity and tailored solutions that fit your unique optical integration needs.
Description
Product Features & Applications
| Features | Applications |
| High reliability and stability | Fiber laser |
| High extinction ratio | Fiber amplifier |
| Low insertion loss | Test instrument |
Performance Specifications
| Parameter | APC | UPC | ||
| Operating Wavelength（nm） | 780、850、980、1064、1310、1550 | |||
| Grade | P | A | P | A |
| Insertion Loss（dB） | ≤0.40 | ≤0.50 | ≤0.30 | ≤0.40 |
| Return Loss（dB） | ≥60 | ≥50 | ≥55 | ≥50 |
| Extinction ratio (dB) | ≥20 | |||
| Repeatability（dB） | ≤0.1 | |||
| Interchangeability（dB） | ≤0.2 | |||
| Plug times（times） | ≥1000 | |||
| Fiber Type | PM780、PM850、PM980、PM1310、PM1550 | |||
| Durability（dB） | ≤0.2 | |||
| Operating temperature（℃） | -5~+70 | |||
| Storage temperature（℃） | -40~+85 | |||
| * The specifications are w/o connector. |
| * For devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB lower for ER. |

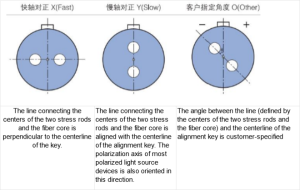

| * For device with connector, key aligned to slow axis. |
Product Ordering information:
| Product Description | Operating Wavelength | Grade | Axis Alignment | Pigtail Type | Input/Output Connector Type | Fiber Length |
| P=Polarization | 78=780nm | P= Perfect | S=Slow axis | 0=250um | 0=None | 005=0.5m |
| M=Maintaining | 85=850nm | A= Grade A | F= Fast axis | 1=900um | 1=FC/UFC | 010=1.0m |
| F=Fiber | 98=980nm | 2=2mm | 2=FC/APC | 020=2.0m | ||
| P=Patch-cord | 06=1060nm | 3=3mm | 3=SC/UPC | 030=3.0m | ||
| 13=1310nm | 4=SC/APC | |||||
| 15=1550nm | 5=LC/UPC | |||||
| 6=LC/APC |
