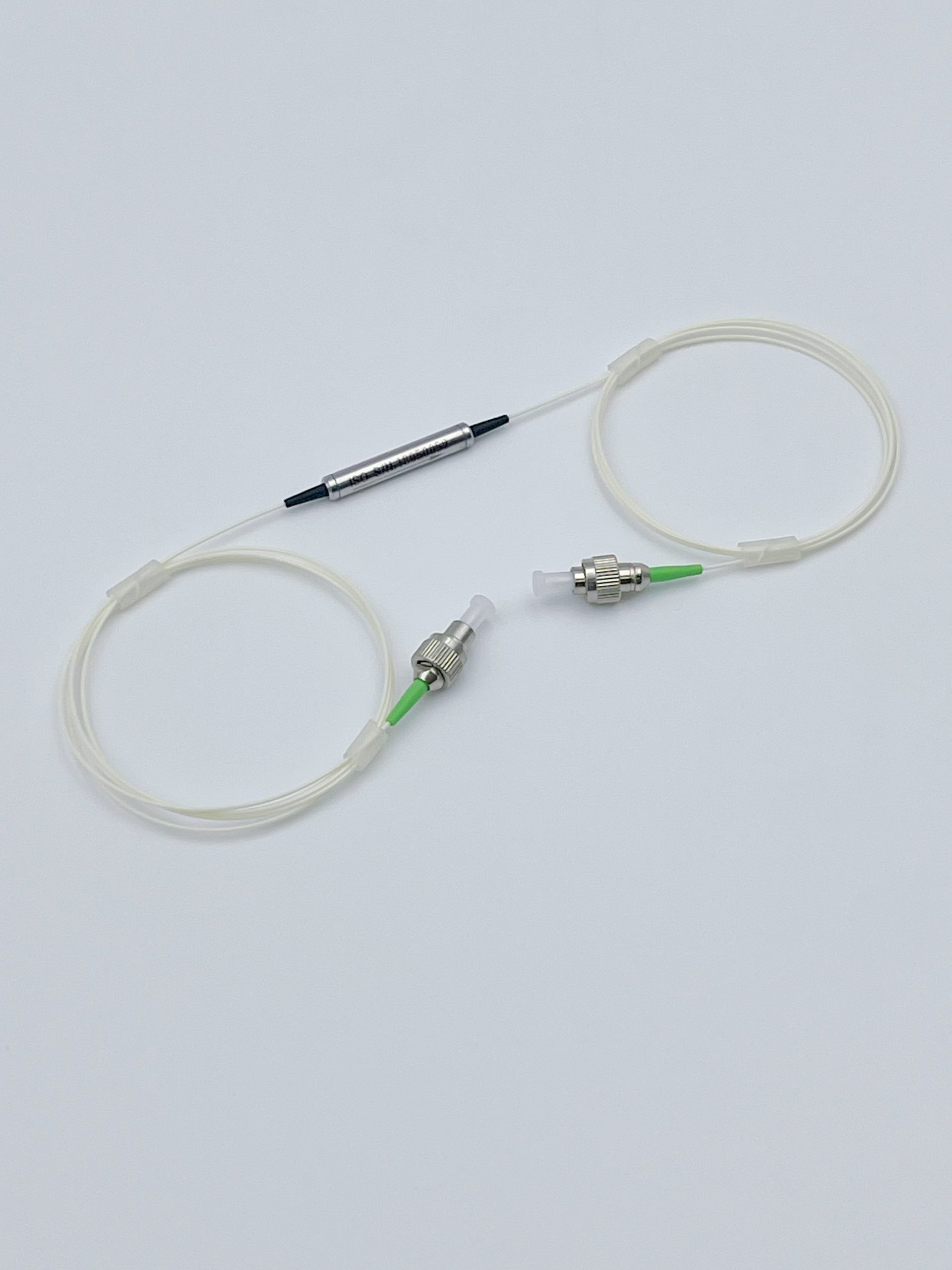

Single mode single and double fiber isolator
This single-mode optical isolator provides effective protection against back reflections in 1310nm and 1550nm wavelength systems. Available in both single and double stage configurations, it offers high isolation, low insertion loss, and excellent return loss, with an epoxy-free optical path ensuring reliability.
Ideal for CATV systems, fiber amplifiers, telecommunications, and test applications, the isolator is compatible with SMF-28 fiber and supports various connector types and fiber lengths for flexible integration.
Description
| Features | Applications |
| High Isolation | CATV Fiberoptic Links |
| Low Insertion Loss | Fiberoptic Amplifiers |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Epoxy free on optical path | Telecommunications |
| Performance Specifications | |||
| Parameter | P Grade | A Grade | |
| Operating Wavelength (nm) | 1310 or 1550 ±15 | ||
| Typical Isolation(dB) | 40 | 40 | |
| Minimum Isolation (dB) | 30 | 28 | |
| Typical Insertion Loss (dB) | ≤0.35 | ≤0.45 | |
| Maximum Insertion Loss (dB) | ≤0.5 | ≤0.7 | |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 | |
| polarization dependent loss(dB) | ≤0.05 | ≤0.1 | |
| polarization mode dispersion(ps) | 0.2(0.05 available upon request) | ||
| Fiber Type | Corning SMF-28 | ||
| Fiber Length(min) | 1M each end | ||
| Maximum Power Handling (mW) | 300 | ||
| Opterating Temperature (℃) | -20~+75 | ||
| Storage Temperature (℃) | -40~+85 | ||
| Package dimension (mm) | Φ5.5xL30 |
| Ordering Information | ||||
| Product | wavelength | Fiber Type | Connector | Fiber length |
| Single stage | 1=Bare fiber | FC/PC | 0=0.5m | |
| suppository | 1310nm | FC/APC | 1=1m | |
| 1550nm | SC/PC | 2=2m | ||
| 2=900umLoose tube | SC/APC | ect. | ||
| ect. |
