Understanding WDM, CWDM, and DWDM in Fiber Optic Communication
As global data demand surges—driven by 5G, cloud computing, and AI infrastructure—network operators face a common challenge: how to increase fiber capacity without laying new cables. Wavelength Division Multiplexing (WDM) technology provides the answer by enabling multiple optical signals to travel through a single fiber using different wavelengths of light.
At Feiyi Optoelectronic, we manufacture high‑performance WDM components that help build scalable, future‑ready networks. Here is a simple breakdown of the key WDM technologies.
📡 What is WDM?
Wavelength Division Multiplexing (WDM) is the fundamental technology that combines multiple optical signals onto a single fiber by assigning each signal a unique wavelength. It maximizes the use of existing fiber infrastructure, dramatically increasing bandwidth without costly new deployments.
🌐 CWDM (Coarse Wavelength Division Multiplexing)
CWDM uses wider wavelength spacing (typically 20 nm), which allows for simpler, more cost‑effective transceivers and passive components. It is an ideal solution for:
- Metro and access networks
- Enterprise connectivity
- Campus and data center interconnects over shorter distances
Key advantages: Lower cost, easier deployment, and adequate capacity for many regional applications.
⚡ DWDM (Dense Wavelength Division Multiplexing)
DWDM packs wavelengths much more tightly—down to 0.8 nm or even 50 GHz spacing—enabling dozens of channels on a single fiber. It is engineered for:
- Long‑haul backbone networks
- High‑capacity metro cores
- Large‑scale data center interconnects (DCI)
Key advantages: Massive scalability, extended reach, and support for advanced modulation formats up to 400G, 800G and beyond.

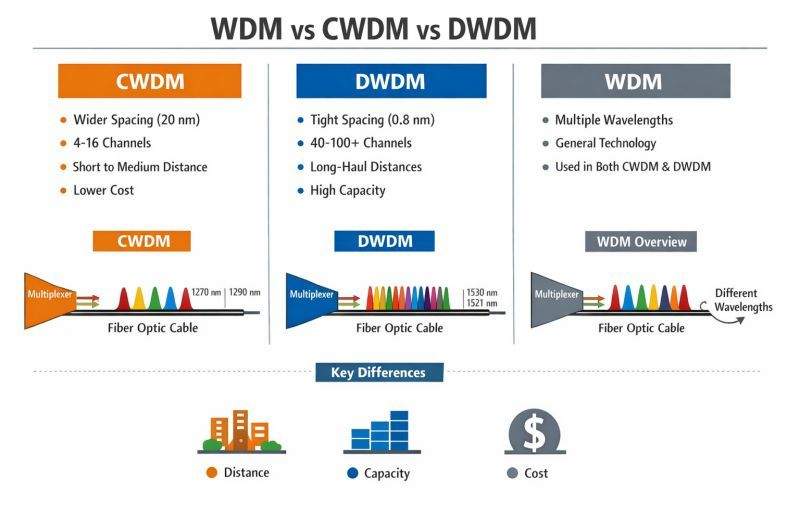

📊 CWDM vs. DWDM: Quick Comparison
| Feature | CWDM | DWDM |
|---|---|---|
| Channel Spacing | 20 nm | 0.8 nm / 50 GHz |
| Typical Channels | Up to 18 | 40, 80, 96+ |
| Reach | Short to medium (≤80 km) | Long‑haul (hundreds of km) |
| Cost | Lower | Higher (but lower per‑bit over distance) |
| Primary Use | Metro, enterprise, access | Core, DCI, submarine |
Why WDM Matters Today
Choosing between CWDM and DWDM depends on your specific needs for distance, capacity, and scalability. In many modern networks, both technologies coexist—CWDM at the edge and DWDM in the core—to deliver efficient, high‑capacity connectivity.
At Feiyi Optoelectronic, we design and manufacture a full range of WDM components, including:
- CWDM Mux/Demux modules (4 to 18 channels)
- DWDM Mux/Demux modules (50GHz and 100GHz, up to 96 channels)
- Athermal AWG (AAWG) modules
- OADM and filter modules
- Custom WDM solutions for OEM and R&D projects
All our products feature low insertion loss, high isolation, and Telcordia‑qualified reliability, supporting networks that scale with confidence.
Partner with Feiyi
Whether you are expanding a metro network or building the next‑generation AI data center interconnect, our WDM solutions deliver the performance and flexibility you need.
