8-Channel CWDM WDM + Color Optical Module Integrated Solution — 8× Fiber Capacity, Significant Cost Reduction
1. Industry Pain Point: Fiber Scarcity as the Biggest Bottleneck for Network Expansion
With the commercialization of 5G, accelerating data center construction, and deepening enterprise digital transformation, global network bandwidth demand is growing exponentially. However, in actual network deployment, three core challenges continue to plague operators, system integrators, and enterprise customers:
- Prohibitive new fiber construction costs — laying new fiber involves complex approvals, lengthy construction cycles, and high capital expenditure
- Extremely low existing fiber utilization — traditional architectures transmit only one signal per fiber, causing severe resource waste
- Slow return on investment — conventional expansion requires adding numerous active devices and fibers, extending payback periods
- Service disruption risk — network upgrades and transformations often impact the stable operation of existing services
To address these pain points, Feiyi Optoelectronic introduces the 8-Channel CWDM Coarse Wavelength Division Multiplexing + Color Optical Module Integrated Solution. By leveraging passive wavelength division multiplexing technology, this solution enables simultaneous transmission of 8 independent service signals over a single fiber, completely resolving the fiber resource bottleneck while helping customers achieve a leapfrog improvement in network bandwidth — at the lowest possible cost.
2. Solution Overview: What Is the 8-Channel CWDM Solution?
CWDM (Coarse Wavelength Division Multiplexing) is a cost-effective optical transmission technology that multiplexes optical signals of different wavelengths into a single fiber for transmission, then separates them through a demultiplexer at the receiving end.
Feiyi Optoelectronic’s 8-channel CWDM solution adopts standard CWDM wavelength grids. The basic configuration supports 8 wavelength channels from 1270 nm to 1410 nm, and can be extended to full-band coverage from 1270 nm to 1610 nm to meet diverse customer requirements. The solution consists of CWDM MUX/DEMUX passive devices and corresponding wavelength-matched color optical modules. Both ends are plug-and-play, require no complex configuration, and integrate seamlessly into existing networks.
3. Core Working Principle

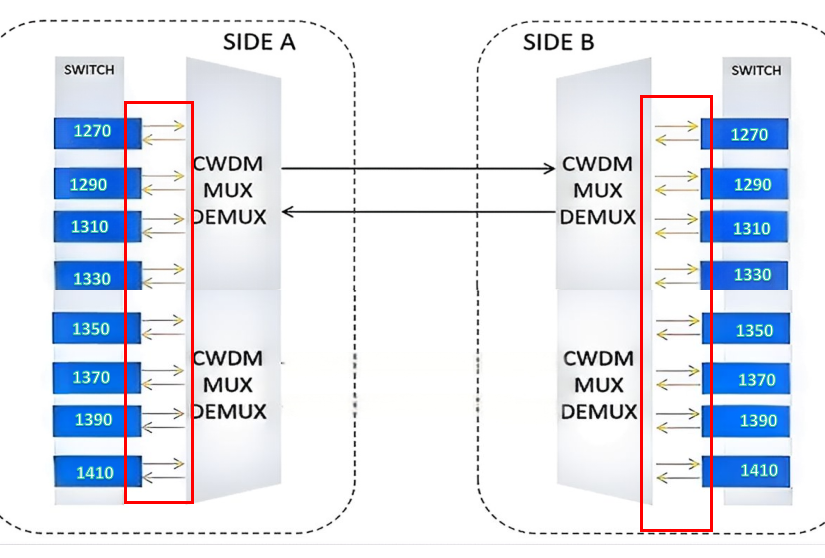

The following explains the working principle of the 8-channel CWDM solution in detail:
3.1 Transmitting End (SIDE A)
- 8 optical ports of the switch are each inserted with color optical modules of corresponding wavelengths (1270 nm, 1290 nm, 1310 nm, 1330 nm, 1350 nm, 1370 nm, 1390 nm, 1410 nm)
- Each color optical module outputs an optical signal of a specific wavelength, connected to the CWDM MUX via optical fiber
- The CWDM MUX combines all 8 optical signals into a single composite signal for transmission over a single fiber
3.2 Transmission Link
- The composite optical signal is transmitted simultaneously over a single fiber without mutual interference
- Supports dual-fiber bidirectional transmission architecture, doubling link utilization
- Transmission distances of 20 km, 40 km, and 80 km are available to meet different scenario requirements
3.3 Receiving End (SIDE B)
- The remote CWDM DEMUX separates the composite signal back into 8 independent optical signals
- Each signal is connected to its corresponding color optical module via optical fiber
- The color optical module converts the optical signal into an electrical signal and feeds it to the corresponding switch port
The entire process uses a completely passive design. The MUX/DEMUX devices require no power supply, are inherently stable and reliable, and incur near-zero maintenance costs.
4. Core Advantages of the Solution
4.1 One Fiber for Multiple Uses, Ultimate Capacity Expansion
- Simultaneously transmits 8 service signals over a single fiber, increasing fiber utilization by 8×
- Completely eliminates the need to lay new fibers
- The basic 8-channel configuration can be smoothly upgraded to 16, 18, or even 20 channels, protecting your initial investment
4.2 Full Wavelength Coverage, Seamless Compatibility
- Complete coverage of standard CWDM wavelengths from 1270 nm to 1610 nm
- Supports a full range of color optical SFP, SFP+, and XFP modules
- Compatible with all mainstream brand switches, including Cisco, Huawei, H3C, ZTE, and others
- Flexible wavelength combination configuration to meet various business scenarios
4.3 Passive Architecture, Unmatched Reliability
- CWDM MUX/DEMUX devices are completely passive — no external power supply required, no electronic component failure risk
- Industrial-grade components with an operating temperature range of -40°C to +85°C, adapting to harsh environments
- Low insertion loss and high channel isolation ensure superior signal transmission quality
- Designed for 24/7 uninterrupted operation in data center environments
4.4 Plug-and-Play, Simple Deployment
- Devices at both ends are plug-and-play, requiring no complex configuration or debugging
- Standard 19-inch rack-mount design, directly installable in existing cabinets
- Deployment cycle shortened to 1–2 days — far faster than laying new fiber
- Smooth upgrade without service interruption
4.5 Cost Reduction & Efficiency Improvement
- Compared with traditional methods, overall construction cost is reduced by more than 60%
- Saves significantly on fiber laying, equipment procurement, and ongoing operation & maintenance
- Short investment return cycle with rapid business expansion capability
5. Typical Application Scenarios
| Scenario | Description |
|---|---|
| Data Center Interconnects | High-speed interconnection between cabinets; disaster recovery links between co-located data centers |
| Metropolitan Area Networks | Expansion of operator MAN access and aggregation layers; bandwidth upgrade of base station backhaul networks |
| Enterprise Campus Networks | Interconnection between buildings in large campuses, hospitals, and government facilities |
| Broadcasting & Transportation | Digital TV signal transmission; communication systems for highways and railways |
6. Feiyi Optoelectronic Product Advantages
As a professional manufacturer of optical passive components with 14 years of industry experience, Feiyi Optoelectronic’s CWDM products offer the following unique advantages:
- Strict Quality Control — All products are certified under the ISO 9001:2015 quality management system. Each device undergoes rigorous optical performance and environmental testing before shipment
- Advanced Manufacturing Technology — High-precision thin-film filter technology ensures wavelength stability. Epoxy-free optical path design prevents wavelength drift over long-term use
- Flexible Customization — Customizable MUX/DEMUX devices with different channel counts, wavelength combinations, and connector types. Full OEM/ODM services available
- Comprehensive Technical Support — Our professional technical team provides full-process support, from solution design to installation guidance. 24-hour response to customer needs
7. Why Choose Feiyi Optoelectronic?
| Advantage | Description |
|---|---|
| Factory Direct Supply | Own manufacturing base eliminates intermediaries, delivering the most competitive pricing |
| 14 Years of Experience | Focused on R&D and production of optical passive components since day one |
| Full Product Range | From CWDM, DWDM, and PLC splitters to fiber patch cords — one partner, all solutions |
| Global Service | Products exported to 100+ countries, serving over 5,000 customers worldwide |
| Fast Delivery | Standard products in stock with 24-hour shipping; custom products delivered within 7–15 days |
8. Contact Us
If you are facing challenges with insufficient fiber resources or high network expansion costs, Feiyi Optoelectronic’s 8-Channel CWDM Solution is your ideal choice. We provide customized solutions and competitive quotations tailored to your specific requirements.
Feiyi Optoelectronic is committed to providing global customers with high-quality, cost-effective optical communication solutions — building a smarter digital future together.
