PM 2×2 Magneto-Optic Switch
The M2x2 optical switch is connected to the optical path by connecting or blocking the optical signal. the switch has non-mechanical configurations and activated via an electrical control signal. the switch also has build-in circulator and isolator functions. Products are widely used in aerospace and military equipment.
Description
Product Features & Applications
| Features | Applications |
| 1.Solid-state high speed | 1.Aerospace equipment |
| 2.High Stability, High Reliability | 2.Configurable Add/Drop |
| 3.Epoxy-free on Optical Path | 3.System monitoring |
| 4.Fail-safe latching | 4.Sensing system |
Performance Specifications
| Parameters | Unit | Specifications |
| Wavelength Range | nm | 1520 ~ 1580 |
| Test Wavelength | nm | 1550 |
| Insertion Loss 1, 2 | dB | ≤ 1.2 |
| TDL | dB | ≤ 0.30 |
| PDL | dB | ≤ 0.20 |
| Return Loss | dB | ≥ 50 |
| Crosstalk | dB | Bidirectional ≥ 20 |
| Unidirectional ≥ 35 | ||
| Repeatability | dB | ≤ ±0.01 |
| Switching Time | us | ≤ 100 |
| Pulse Duration | us | ≥ 200 |
| Durability | Cycles | ≥10 Billions |
| Switch Type | NA | Latching |
| Operating Current | mA | ≤ 200 |
| Maximum Optical Power | mW | ≤ 500 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |

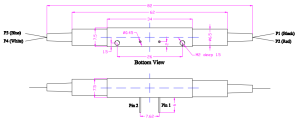

| Dimension | mm | (L)34.0×(W)7.5×(H)7.5 ±0.2 |
| Note: 1 Test at room temperature and SOP. 2 Excluding connectors, 0.2dB for one pair connectors. |
||
Electrical Drive
| Type | Status | Optical Route | Electric Drive | |
| PM-M21x2 | Pin 1 | Pin 2 | ||
| Bidirectiona | Ⅰ | P1←→ P2 P2←→ P4 |
GND | V+ |
| Ⅱ | P1←→ P4 P2←→ P3 |
V+ | GND | |
| Unidirectional | Ⅰ | P1→P3 P3→P2 P2→P4 P4→P1 |
GND | V+ |
| Ⅱ | P1→P4 P4→P2 P2→P3 P3→P1 |
V+ | GND | |
Functional Diagram
| Bidirectional | |
| Status I | Status II |
 |
 |
| Unidirectional | |
| Status I | Status II |
 |
 |
Ordering Information
YFS-M2x2-□-□-□-□-□-□-□
| —□ | —□ | —□ | —□ | —□ | —□ | —□ |
| Switch Type | Fiber Type | Voltage | Wavelength | Tube Type | Fiber Length | Connector |
| B：
Bidirectional U： Unidirectional |
SM：
SM，9/125 X： Others |
2.5：
2.5V 5： 5.0V X： Others |
1550：
1550nm X： Others |
250：
250um 900： 900um X： Others |
05：
0.5m±5cm 10： 1.0m±5cm X： Others |
OO：None
FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
