PM 1×4 Magneto-Optic Switch
The PM 1×4 Magneto-Optic Switch is connected to the optical path by connecting or blocking the optical signal. the switch has non-mechanical configurations and activated via an electrical control signal. the switch also has build-in circulator and isolator functions. Products are widely used in aerospace and military equipment.
Description
Product Features & Applications
| Features | Applications |
| 1.Aerospace equipment | 1.Solid-state high speed |
| 2.High Stability, High Reliability | 2.Configurable Add/Drop |
| 3.Epoxy-free on Optical Path | 3.System monitoring |
| 4.Fail-safe latching | 4.Sensing system |
Performance Specifications
| Parameters | Unit | Specifications |
| Wavelength Range | nm | 1520 ~ 1580 |
| Test Wavelength | nm | 1550 |
| Insertion Loss 1, 2 | dB | ≤ 1.2 |
| TDL | dB | ≤ 0.30 |
| ER | dB | ≥ 18 |
| Return Loss | dB | ≥ 55 |
| Crosstalk | dB | ≥ 40 |
| Repeatability | dB | ≤ ±0.01 |
| Switching Time | us | ≤ 100 |
| Pulse Duration | us | ≥ 200 |
| Durability | Cycles | ≥10 Billions |
| Switch Type | NA | Latching |
| Operating Current | mA | ≤ 200 |
| Maximum Optical Power | mW | ≤ 500 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimension | mm | (L)40.0×(W)14.0×(H)7.5 ±0.2 |
Note:
- Test at room temperature and SOP.
- Excluding connectors, 0.2dB for one pair connectors.

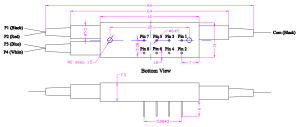

Mechanical Dimensions (Unit:mm)
Electrical Drive
| Type | Status | Optical Route | Pin GroupA
Pin1/ Pin2 |
Pin GroupB
Pin3/ Pin4 |
Pin GroupC
Pin5/ Pin6 |
Pin GroupD
Pin7/ Pin8 |
| PM1x4 | Ⅰ | Com－P1 | V+ / GND | V+ / GND | V+ / GND | GND / V+ |
| Ⅱ | Com－P2 | GND / V+ | GND / V+ | V+ / GND | GND / V+ | |
| Ⅲ | Com－P3 | V+ / GND | GND / V+ | GND / V+ | V+ / GND | |
| Ⅳ | Com－P4 | GND / V+ | V+ / GND | GND / V+ | V+ / GND |
Functional Diagram
| Bidirectional | |

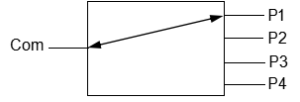

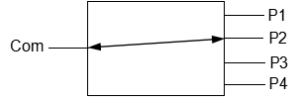

| Status I | Status II |
 |
 |

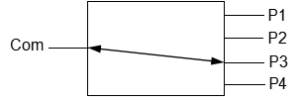

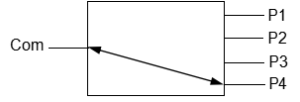

| Status Ⅲ | Status Ⅳ |
 |
 |
Ordering Information
PM1x4-□-□-□-□-□-□-□
| —□ (Switch Type) |
—□ (Fiber Type) |
—□ (Voltage) |
—□ (Wavelength) |
—□ (Tube Type) |
—□ (Fiber Length) |
—□ (Connector) |
| B：Bidirectional | PM1550：PM1550 X：Others |
2.5：2.5V X：Others |
1550：1550nm X：Others |
250：250um 900：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm X：Others |
OO：None FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
